Smart Board Configuration

Screen	Model	AY-WB-055A
	Size	55", 65'', 75'', 85'', 86'', 98'', 100'',110''
	Back light	D-LED
	Resolution	3840*2160
	Luminance	350-500cd/m²
	Contrast Ratio	5000:01:00
	Response time	6ms
	Refresh	60 Hz
	Visual angle	178°(H) / 178°(V)
	Chromatic number	1.07B(10bit)
	Life time	50,000 hrs
System	CPU	8-core:A73×4+A53×4
	System version	Android 13.0
	GPU	G52*8(8 Core)
	RAM	4GB/8GB DDR4
	Internal storage	32GB/64GB/128GB
	Language	English (multi-language optional)
OPS	Chipset	Intel core i5 / i7 / i9 (optional)
	System	Windows 10 pro
	RAM	4GB/8GB/16GB
	SSD	128GB/256GB
Video	TV	Optional
Video	Video decoding	MPEG-2/4, AVS, H.264, H.265,TS, Realmedia…
Power supply	Voltage	100 V ~ 240 V/AC, 50/60 Hz
	Max power	≦200W
	OPS power	DC 19V/5A
	Standby power consumption	<0.5W
	Power switch	*1
Audio	Power	10W/20W（8Ω）* 2
Camera	Build-in camera（4k, 3840*2160）	13MP*1
Microphone	Build-in Microphone array	Mic*8
Input/output interface	VGA IN	*1(Optional)
	AV IN	*1
	PC-AUDIO IN	*1
	RJ45 Ethernet	*1
	Earphone OUT 3.5mm	*1
	HDMI IN	*3
	USB	*4
	USB-TYPE C	*1
	TF-CARD	*1(Optional)
	COAX /SPDIF	*1(Optional)
	Touch in	*1
	Touch out	*1
	WIFI	2.4G1, 5G1
	Bluetooth	*1
	Power(AC)input	*1
Environmental factors	Operating temperature	-10℃ ~ 50℃
	Storage temperature	-20℃ ~ 60℃
	Operating humidity	20% ~ 80% (non-condensing)
	Storage humidity	10% ~ 90% (non-condensing)
	N.W	40KG
	G.W	50KG
Structure appearance	Product size	1265×105×764MM
	Packaging size	1425×214×900MM
	Wall-mounted hole site	4-M8 screw hole 400mm*400mm
	Canning material	Aluminum Front frame, PC back cover
	Shell color	Black Front frame, Black back cover
Accessories	Touch pen	*1
	Remote control	*1
	Wifi antenna	*4
	Manual	*1
	Certificate of conformity/warranty card	*1
	1.5m power cable	*1
	Wall mounting bracket (including screws)	*1(set)
	Smart Pen	*1(Optional)
	Wireless projector	*1(Optional)

Touch Screen System

Touch screenparameters	Touch screen type	Infrared touch frame
	Glass specification	4mm tempered glass with anti-glare
	Resolution of touch	32767×32767
	Scanning frequency	100Hz
	Touch point	20 points (default)40 points (optional)
	Response time	6ms
	Accuracy of touch screen	More than 90% of the touch area is ±2mm
	Diameter of touch point	≥2mm
	Touch control mode	Finger or touch pen
	Theoretical clicks times	Unlimited times
Interface type	USB 2.0
Operating voltage	DC+5V±6%
Power Consumption	≤2 W

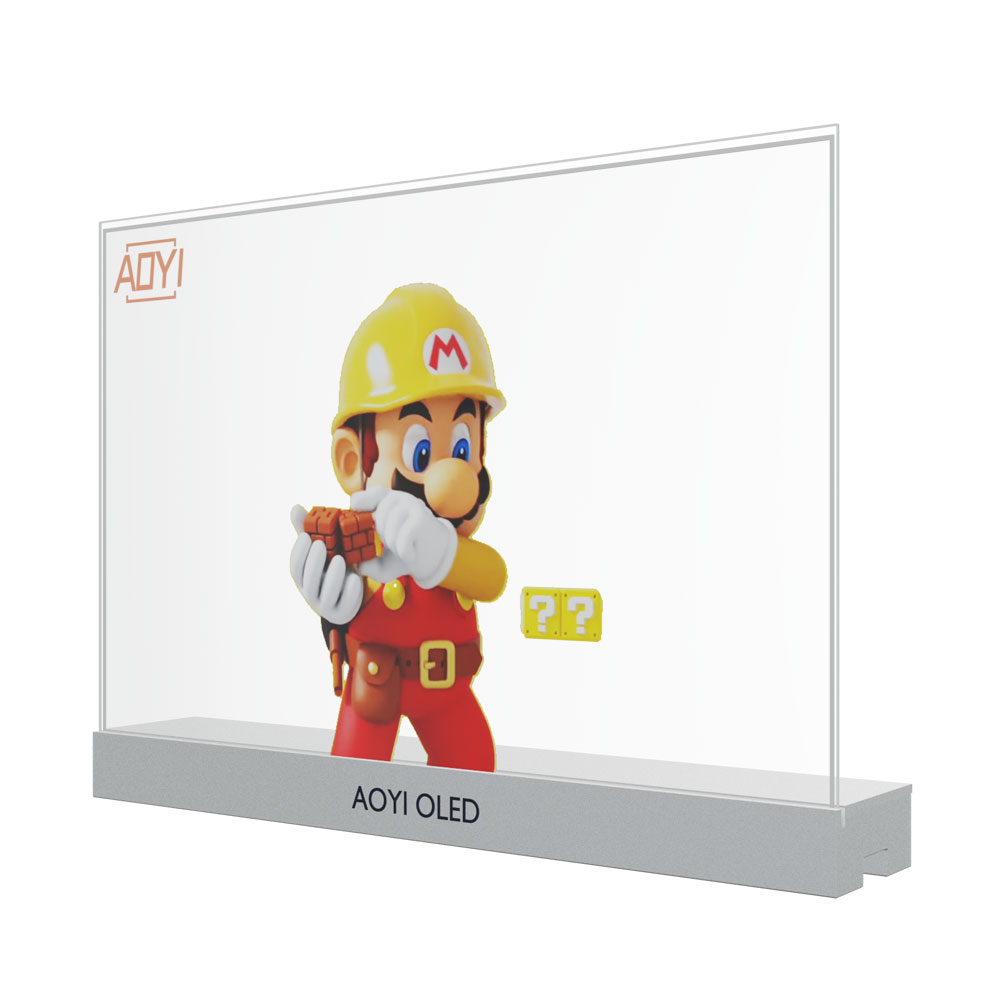

OLED Transparent Display

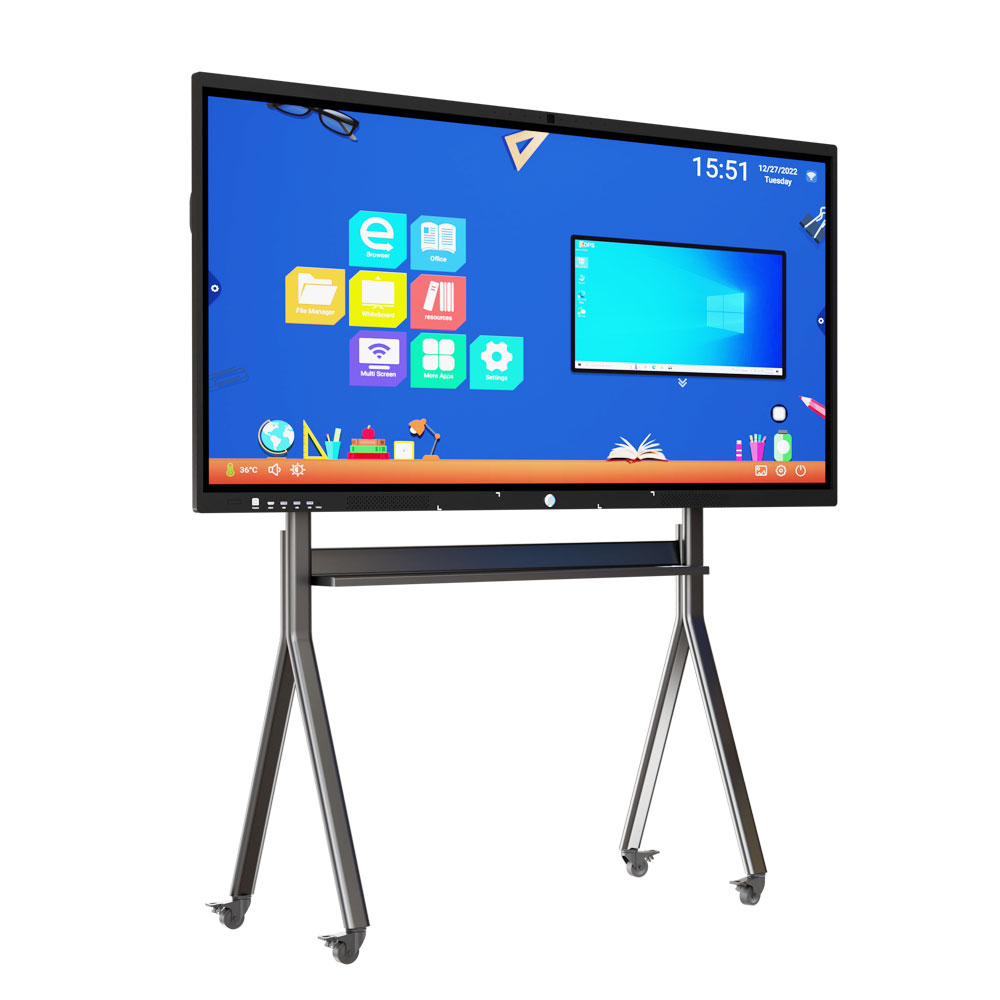

Interactive Whiteboard

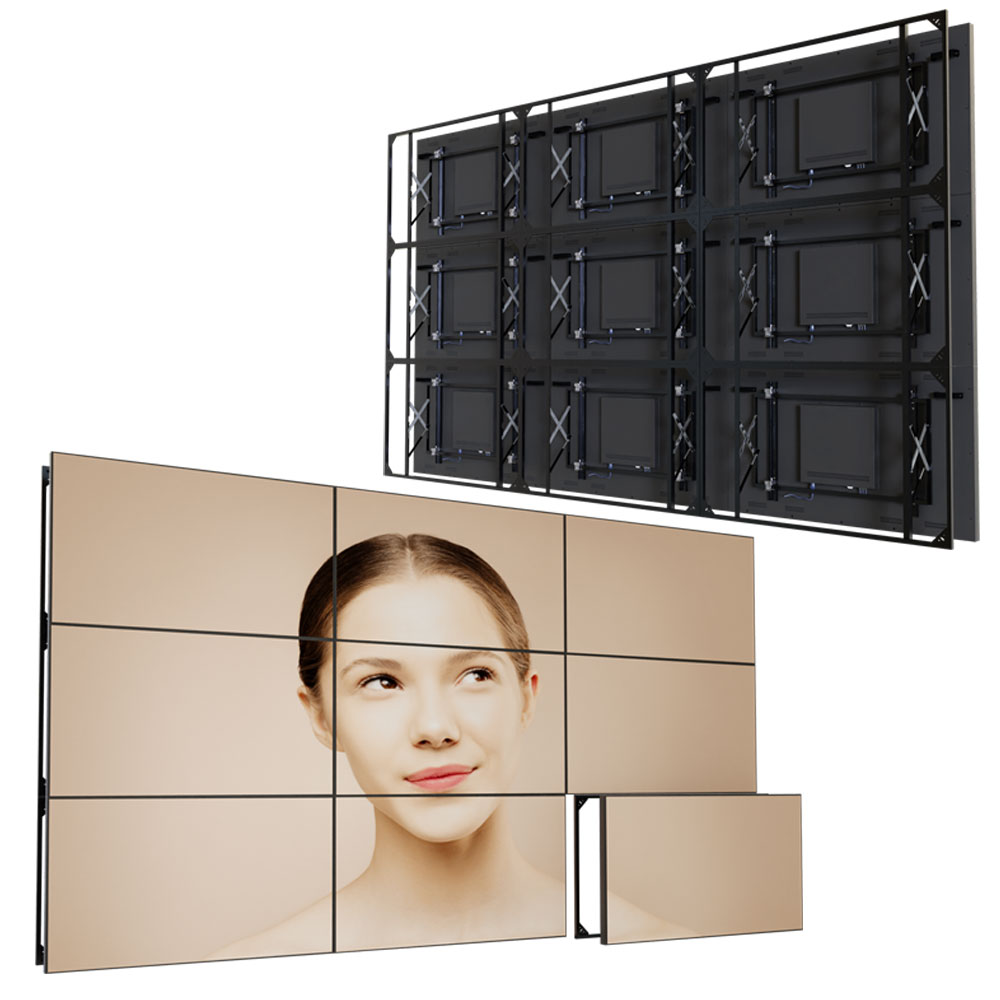

55 Inch LCD Splicing Screen

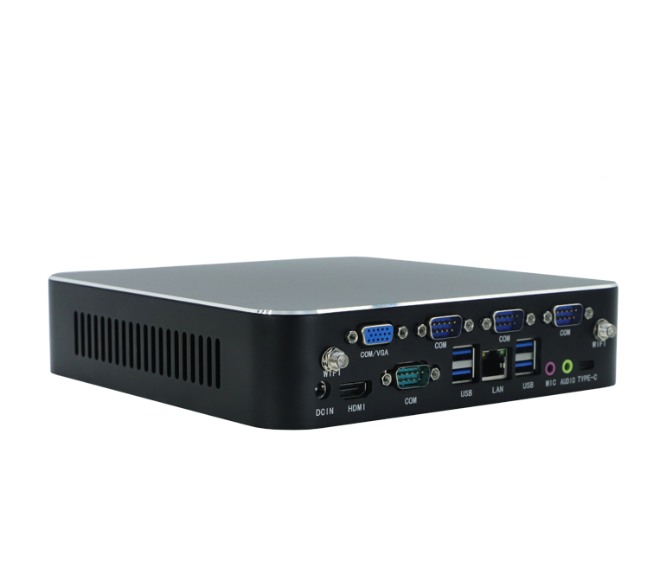

Operating System

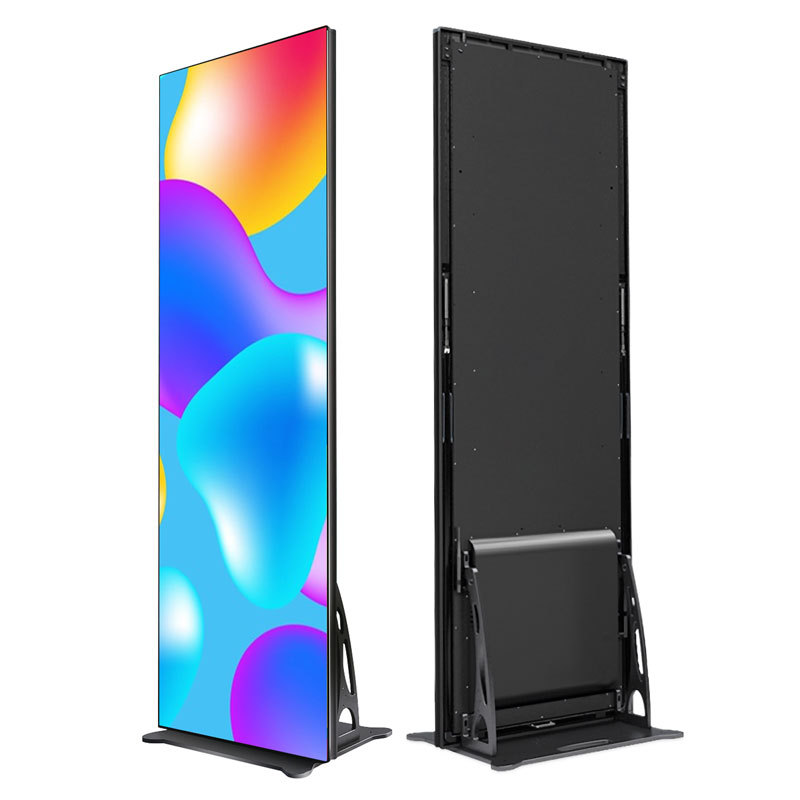

LED Poster

Indoor Rental LED Video Wall

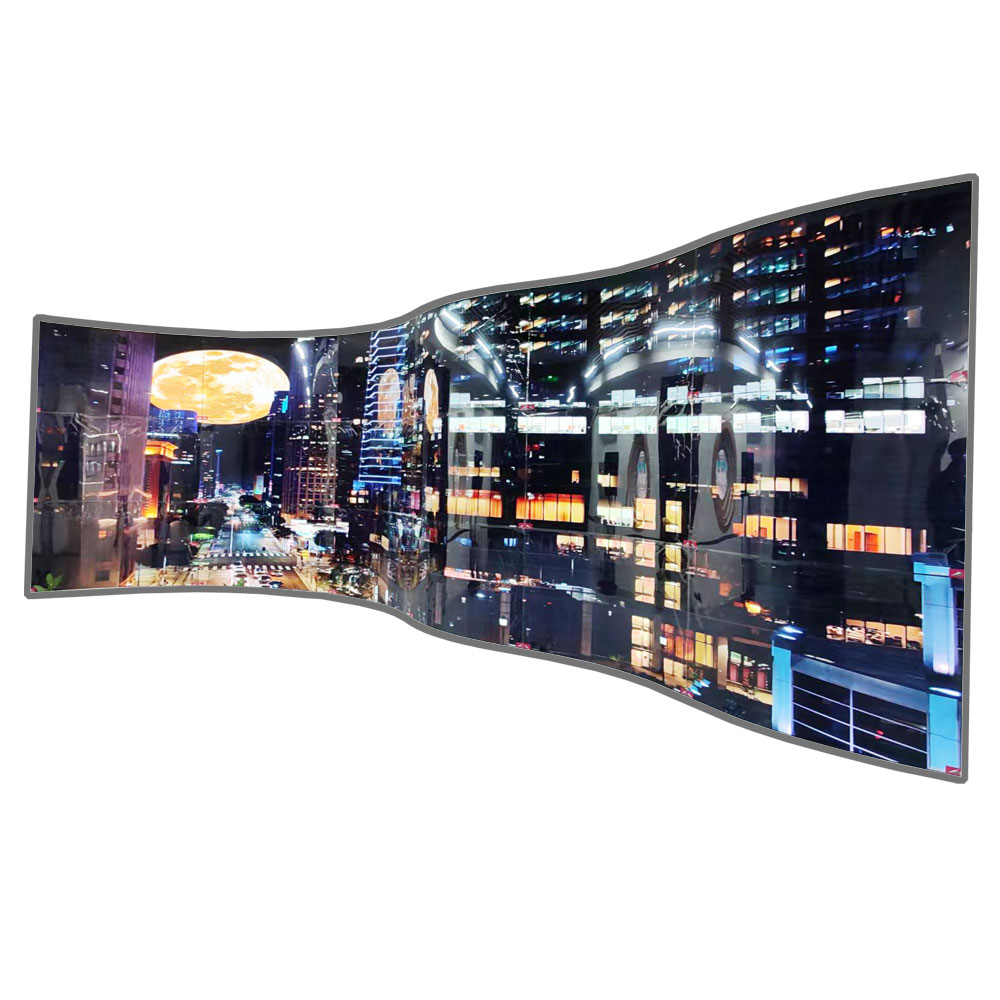

OLED Flexible Video Wall

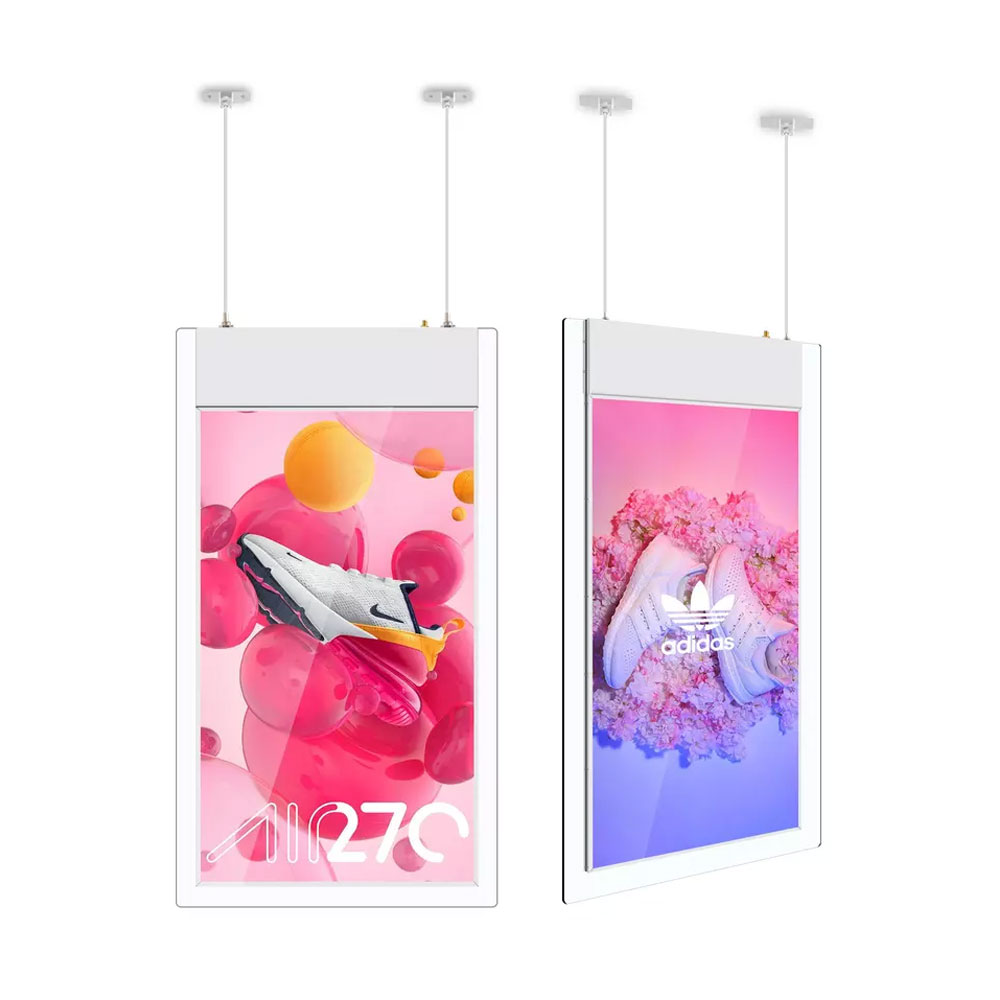

Double Size Screen

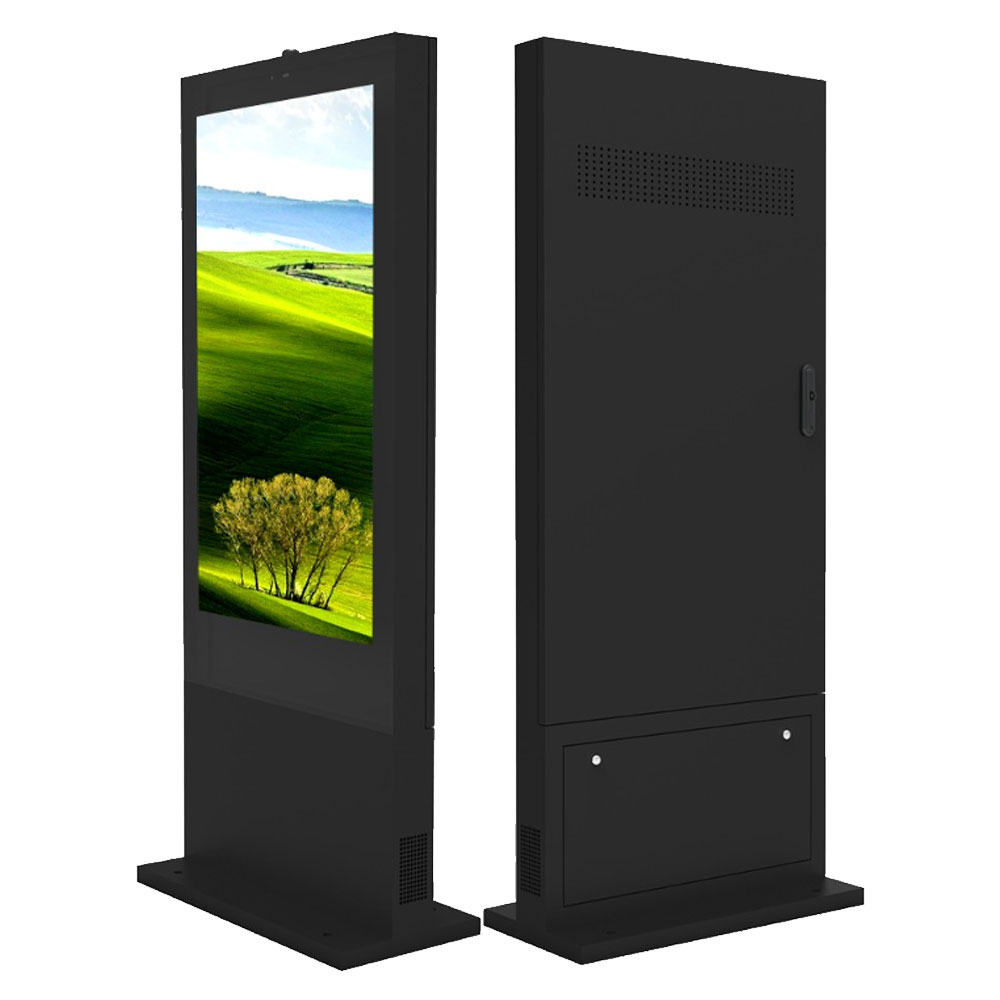

Outdoor Floor Stand Advertising Player

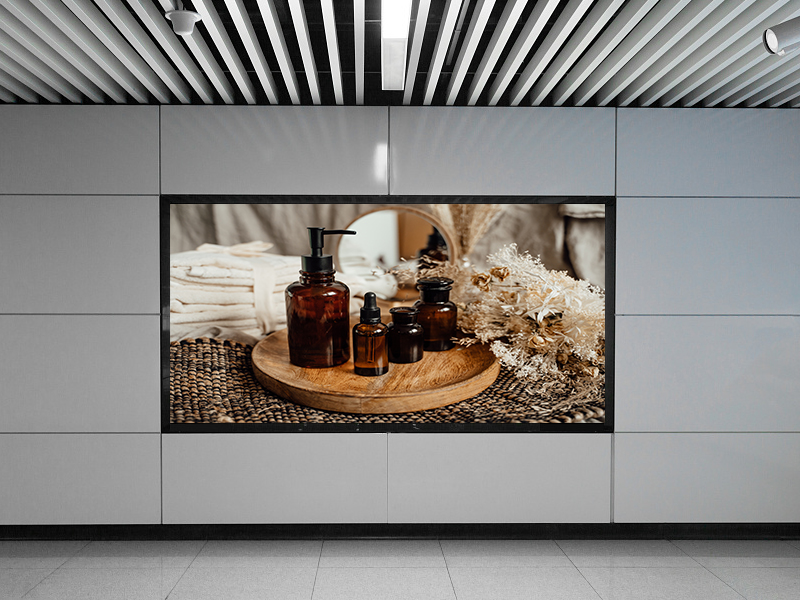

Indoor Wall Mounted AD Player

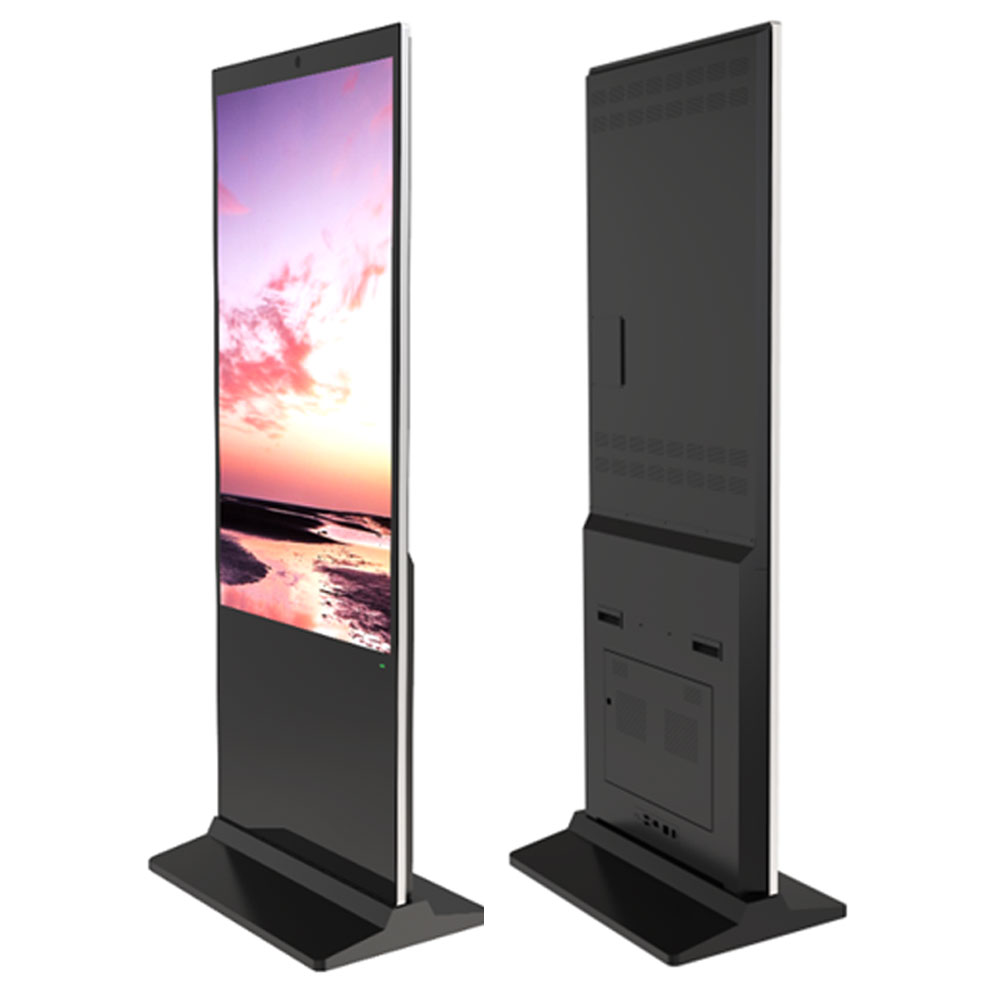

Indoor Floor Stand Advertising Player
