| Model | AY-VW-055A |
| Screen size (diagonal) | 55 inch |
| Splicing gap | 3.5mm |
| Backlight | LED |
| Aspect Ratio | 16:09 |
| Max Resolution | 1920×1080(Backwards compatible) |
| Contrast Ratio | 4500:1 |
| Brightness | 500cd/㎡(or 700cd/㎡) |
| Active area | 1209.8mm(H) × 680.6mm(V) |
| Color saturation | 97% |
| Response time | 6.5ms |
| Viewing Angle | 178° |
| Running time | 7*24hrs |
| Service life | about 60,000 hours |
| Panel color | Black/ Custom color |
| Signal format | PAL/NTSC adapting 480I、576I、720I、720P、1080I、1080P |
| Interface | Input:Power connector、VGA 、DVI 、HDMI、CVBS |
| | Output:CVBS、DVI |
| Control port | Input: serial port(RS232) |
| | Output: serial port(RS232)×2 |
| Panel control | Remote control |
| Third party control | PC control, Cellphone/ iPad control (custumized) |
| Display function overview | Multi-signal split screen display, whole screen display, any combination of display, subtitles display |
| Overlay roaming display | Yes |
| Window cross screen | Yes |
| Power consumption | Operating power:≤170W; Standby power:≤3W |
| Language | English(Multilingual optional) |
| Installation | Ultra-thin design, embedded/wall hanging/lifting/desktop optional, customized |
| Structure | Strong solid metal casing, anti-static, anti-magnetic field, anti-strong interference |
| Operating temperature / humidity | 0℃~50℃ / 20%~80%(non-condensing) |
| Storage temperature / humidity | -10℃~60℃ / 5~95%(non-condensing) |
| Accessories | Manual, Power cable, Certification, Warranty card |

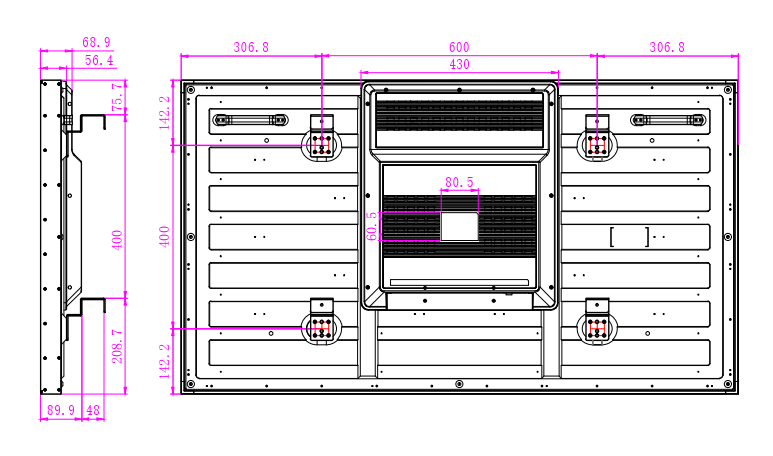

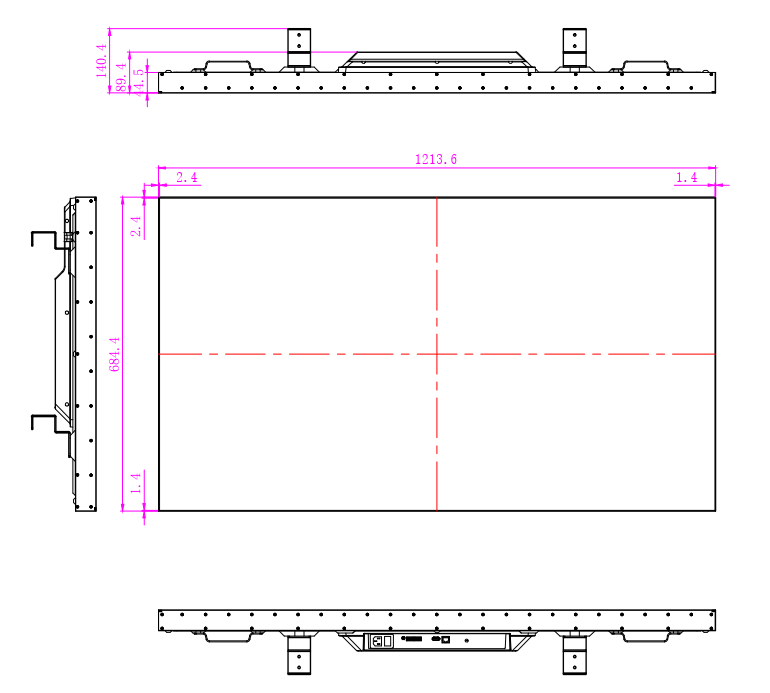

| Unit Dimension(mm) | 1213.5(L)×684.3(H)×69(D) |
| Unit Weight | about 24kg (excluding accessories) |
