| Model | AY-OV-055A |
| Screen size (diagonal) | 55 inch |
| Splicing gap | 3.5mm |
| Backlight | OLED |
| Aspect Ratio | 16:09 |
| Max Resolution | 1920×1080（Backwards compatible） |
| Contrast Ratio | 100000:1 |
| Brightness | 140/450nit (APL 100%/25%)* Average Picture Level |
| Active area | 1209.6 X 680.4mm |
| Color saturation | 108% |
| Response time | 1ms(G to G), 8ms(MPRT) |
| Viewing Angle | 178° |
| Running time | 7*18hrs |
| Service life | about 60,000 hours |
| Panel color | Black |
| Signal format | PAL/NTSC adapting 480I、576I、720I、720P、1080I、1080P |
| Interface | Input：Power connector、VGA 、DVI 、HDMI、CVBS |
| Output：CVBS、DVI |
| Control port | Input: serial port(RS232) |
| Output: serial port(RS232) |
| Panel control | Remote control |
| Third party control | PC control, Cellphone/ iPad control (custumized) |
| Display function overview | Multi-signal split screen display, whole screen display, any combination of display, subtitles display |
| Overlay roaming display | Yes |
| Window cross screen | Yes |
| Power consumption | Operating power：≤170W; Standby power：≤3W |
| Language | English（Multilingual optional） |
| Installation | Ultra-thin design, embedded/wall hanging/lifting/desktop optional, customized |
| Structure | Magnetic absorption |
| Operating temperature / humidity | 0℃～50℃ / 20%～80%（non-condensing） |
| Storage temperature / humidity | -10℃～60℃ / 5～95%（non-condensing） |
| Accessories | Manual, Power cable, Certification, Warranty card |

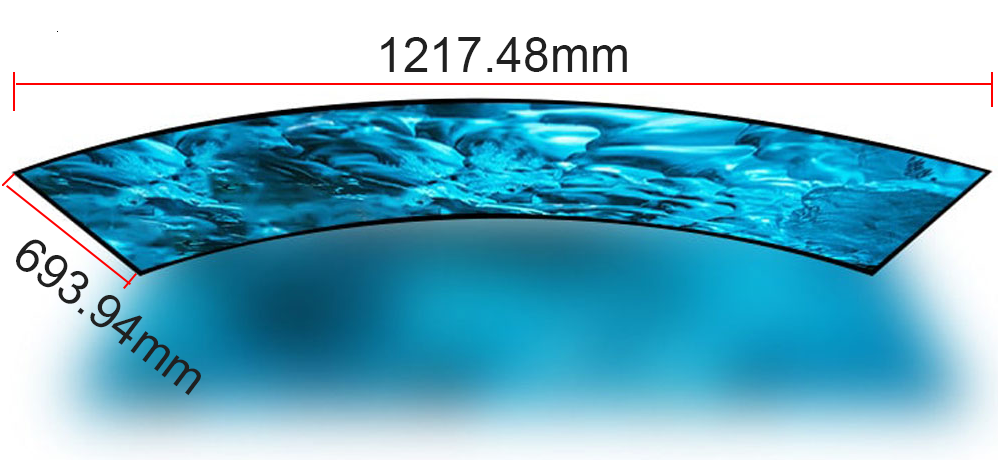

| Unit Dimension(mm) | 1217.48mm×693.94mm×1mm |
| Unit Weight | about 2.4kg (excluding accessories) |
