| Screen | Model | AY-WB-055A |
| Size | 55", 65'', 75'', 85'', 86'', 98'', 100'',110'' |
| Back light | D-LED |
| Resolution | 3840*2160 |
| Luminance | 350-500cd/m² |
| Contrast Ratio | 5000:01:00 |
| Response time | 6ms |
| Refresh | 60 Hz |
| Visual angle | 178°(H) / 178°(V) |
| Chromatic number | 1.07B(10bit) |
| Life time | 50,000 hrs |
| System | CPU | 8-core:A73×4+A53×4 |
| System version | Android 13.0 |
| GPU | G52*8(8 Core) |
| RAM | 4GB/8GB DDR4 |
| Internal storage | 32GB/64GB/128GB |
| Language | English (multi-language optional) |
| OPS | Chipset | Intel core i5 / i7 / i9 (optional) |
| System | Windows 10 pro |
| RAM | 4GB/8GB/16GB |
| SSD | 128GB/256GB |
| Video | TV | Optional |
| Video decoding | MPEG-2/4, AVS, H.264, H.265,TS, Realmedia… |
| Power supply | Voltage | 100 V ~ 240 V/AC, 50/60 Hz |
| Max power | ≦200W |
| OPS power | DC 19V/5A |
| Standby power consumption | <0.5W |
| Power switch | *1 |
| Audio | Power | 10W/20W（8Ω）* 2 |
| Camera | Build-in camera（4k, 3840*2160） | 13MP*1 |
| Microphone | Build-in Microphone array | Mic*8 |
| Input/output interface | VGA IN | *1(Optional) |
| AV IN | *1 |
| PC-AUDIO IN | *1 |
| RJ45 Ethernet | *1 |
| Earphone OUT 3.5mm | *1 |
| HDMI IN | *3 |
| USB | *4 |
| USB-TYPE C | *1 |
| TF-CARD | *1(Optional) |
| COAX /SPDIF | *1(Optional) |
| Touch in | *1 |
| Touch out | *1 |
| WIFI | 2.4G*1, 5G*1 |
| Bluetooth | *1 |
| Power(AC)input | *1 |
| Environmental factors | Operating temperature | -10℃ ~ 50℃ |
| Storage temperature | -20℃ ~ 60℃ |
| Operating humidity | 20% ~ 80% (non-condensing) |
| Storage humidity | 10% ~ 90% (non-condensing) |
| N.W | 40KG |
| G.W | 50KG |

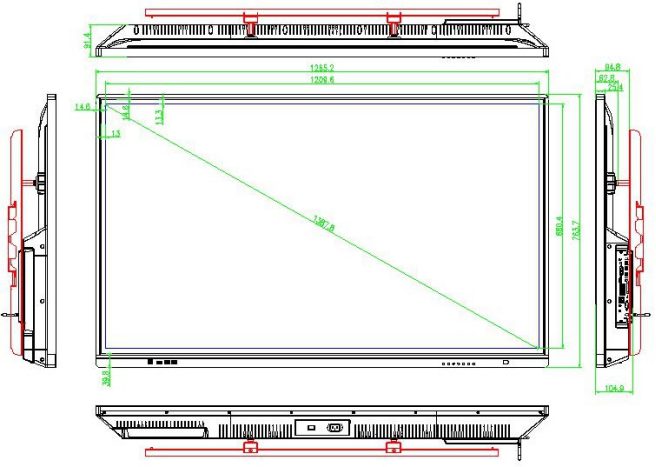

| Structure appearance | Product size | 1265×105×764MM |
| Packaging size | 1425×214×900MM |

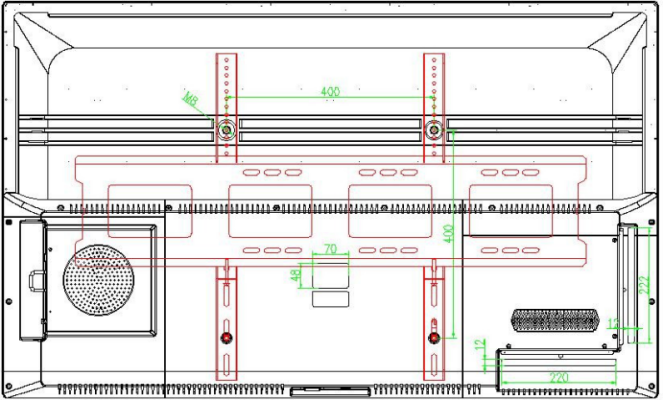

| Wall-mounted hole site | 4-M8 screw hole 400mm*400mm |
| Canning material | Aluminum Front frame, PC back cover |
| Shell color | Black Front frame, Black back cover |
| Accessories | Touch pen | *1 |
| Remote control | *1 |
| Wifi antenna | *4 |
| Manual | *1 |
| Certificate of conformity/warranty card | *1 |
| 1.5m power cable | *1 |
| Wall mounting bracket (including screws) | *1(set) |
| Smart Pen | *1(Optional) |
| Wireless projector | *1(Optional) |
