Indoor Rental LED Video Wall
Product Configuration
| 1. LED Lamp | ||
| No | Item | Parameter |
| 1 | LED Brand | Nation Star/Kinglight/HongSheng |
| 2 | LED Type | SMD2121 |
| 3 | LED Chip size | R:8~12mil;B&G:8~13X14mil |
| 4 | View angle | 140°/140° |
| 5 | LED Brightness | 1200nit |
| 6 | Wavelength | R:625nm±5.0nm; G:525nm±2.5 nm; B:475nm±2.5 nm |
| 2. Module | ||
| No | Item | Parameter |
| 1 | Module size | 250mmX250mm |
| 2 | Pitch | 3.91mm |
| 3 | Pixel Config | 1R1G1B |
| 4 | Total Pixels | 64×64=4096 |
| 5 | Drive mode | 1/16 scan |
| 6 | View angle | 140°/140° |
| 7 | Waterproof | Front:IP43 |

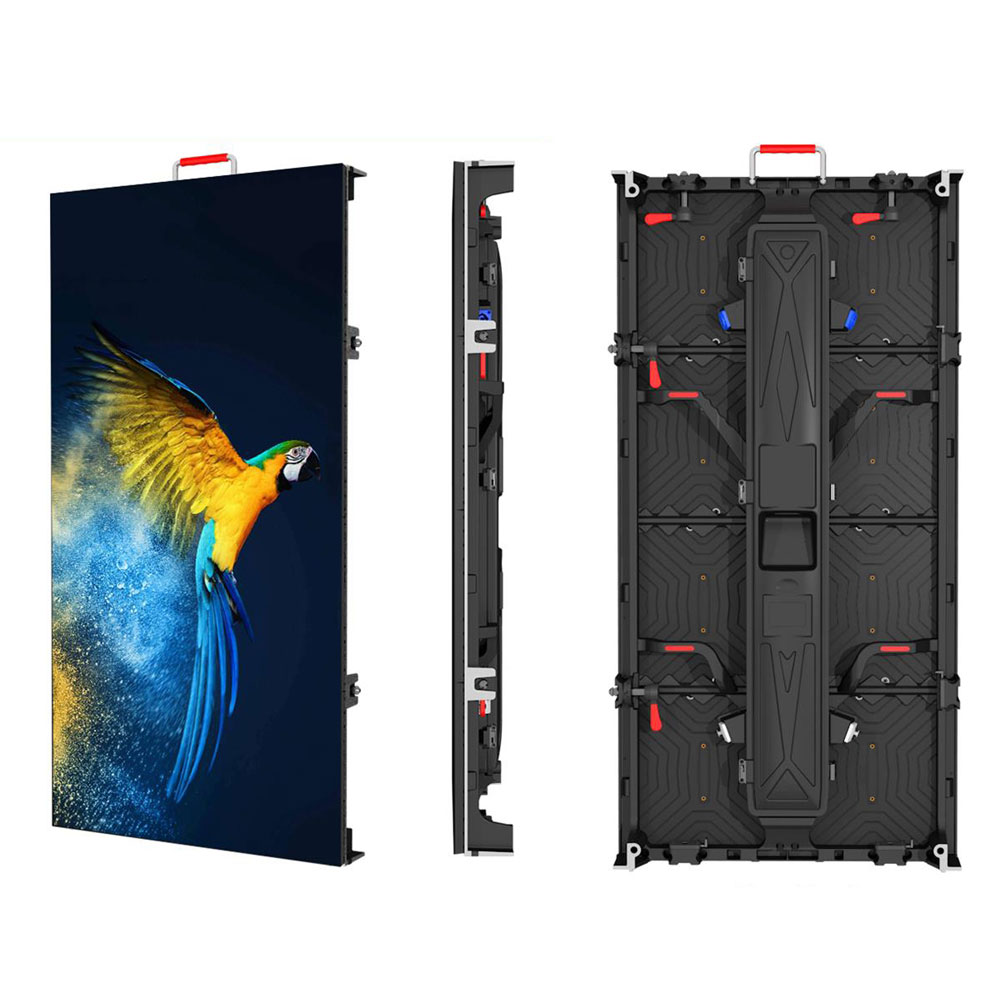

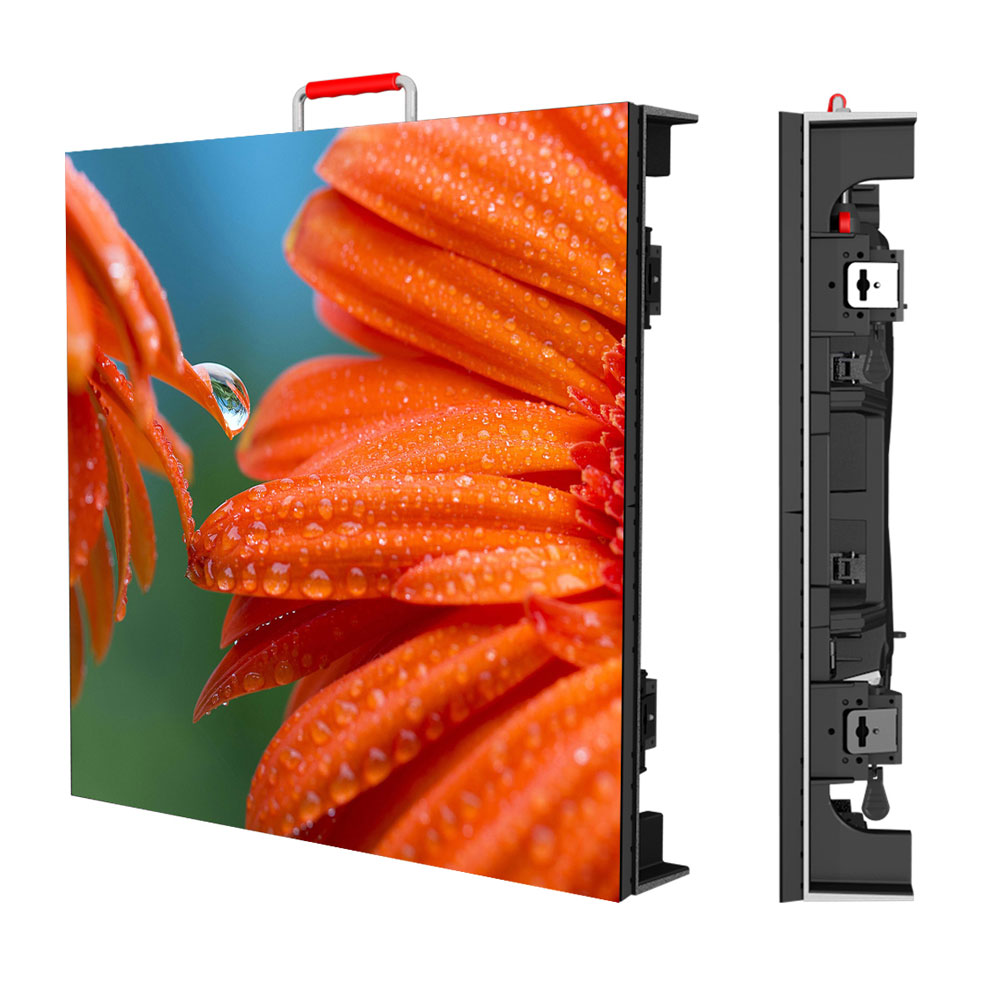

| 3. Cabinet | ||
| No | Item | Parameter |
| 1 | Cabinet size | 500 × 500 mm / 500 × 1000 mm |
| 2 | Total Pixels | 128× 128 Pixels / 128× 256 Pixels |
| 3 | Pixel density | 65536 pixels/m² |
| 4 | Power consumption | Max:600W/㎡ Ave:250W/㎡ |
| 5 | Weight | 30kg/m² |
| 6 | Input voltage | 110V/220V |
| 7 | Quantity of Modules | 2(W)×4(H)=8 pics |
| 8 | Cabinet material | Aluminum |
| 9 | Lock | Yes |
| 10 | Air plug | Yes |
| 11 | Hanging rings | No |
| 12 | Power supply brand | G-energy |
| 13 | Color of cabinet | Black |
